the earthing rod of the earthing pin for arresters can be equipped with power lightning protector.
Product Details

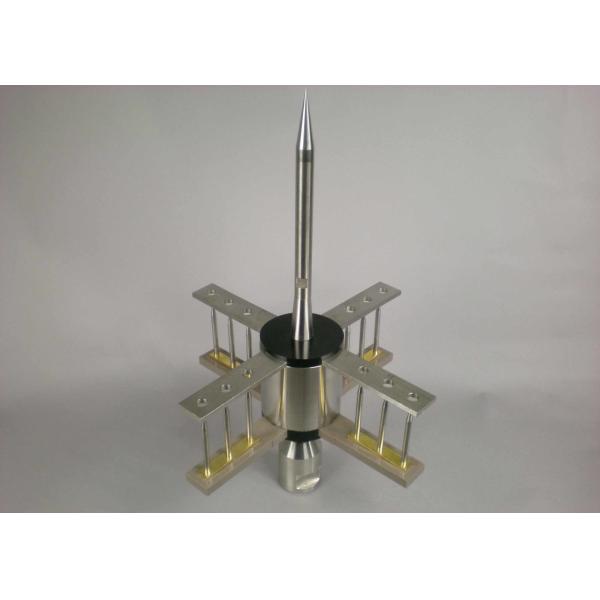

Lightning rod is the lightning protection measures adopted by Zhejiang thor Electric Co., Ltd. to independently develop and produce lightning strike hazards. It is a non inductive, low impedance metal inner conductor that leads the wire down, conveying the lightning current after the flashover to the earth and making the protected antenna tower or building not flank and electrified. It is suitable for wireless communication base station, flammable, explosive warehouse, high building, University, hospital, civil, military ship, historic building of airport, horse racing yard, sports field chemicals, rubber, oil depot, meteorological station, petroleum gas station, military base mine and so on.
Use of attention
1. line shall be electrically connected with the main reinforcement of the building, or two or more than two lead lines should be made according to the regulations.
2. the lead off line should be broken card and insulation protection near the ground.
3. avoid collision when handling and hoisting.
4. A straight line should be formed when the lightning rod is connected to the mast
Product features
1. conical needle tip hardness, high toughness and no bending needle
2. welding, good quality, small deformation and good crack resistance.
3. zinc is not easy to rust
Product specification
| Model |
Specifications |
With flange height M |
Texture of material |
working temperature |
|
TRSB
|
3.1 |
1.2
1.5
1.8
The highest 20m can be done
|
Stainless steel
|
-40℃ ～ +80℃
|
| 3.3 |
| 4.3 |
| 5.3 |
| 6.3 |
|
Working principle of product
The lightning rod is connected to the ground through the wire and forms the equal potential difference with the ground. Using its own height, the electric field of the lightning cloud is distorted to increase the electric field intensity to the limit value. It begins to ionize and descends the pilot discharge; the lightning rod produces the tip discharge under the action of the strong electric field, and forms the upward pilot discharge; both converge to form the lightning passage, Then it goes into the earth to achieve the effect of lightning protection. In fact, the lightning rod is a lightning needle, which can lead the surrounding lightning and discharge ahead of time and pass the lightning current through its own grounding conductor to the ground, avoiding the direct lightning strike of the protection object.
Product packaging:Carton packing
Transportation method
1. Express company: FEDEX,UPS,DHL,TNT
2. Trains, ships, aircraft transport
Product Tags:
|
|
Earthing Pin Lightning Protection Rod High Toughness Good Crack Resistance Images
|
